OPEN
CASSETTE
AWNING
STRAND CROSS ARM
OPEN CASSETTE AWNING
ARMS: NORMAL / LED / EXTRA STRONG
The Cross Arm awning is a new model in our Strand range, developed to resolve the issue of limited space. When you need an awning where the projection is greater than the frame is wide, by offsetting the arms to sit on top of each other and overlap when closed, we are able to fit longer arms into the frame.
available in two Standard Colours
Open cassette awnings are a great shading solution, the LED lighting in the arms is a perfect way to illuminate the area creating usable spaces day and night.
- Suitable for commercial & domestic use
- Manual or motorised, and phone app enabled
- Arm Variants: Normal, LED Lights and Extra Strong available
- Signwriting available
- Frames can be powder coated
Technical Info
■ Frame
Made from aluminium extrusions with aluminium parts and components
■ Arms
Made from aluminium extrusions with double springs and stainless steel chain
■ Fabric
Acrylic or Polyester available
■ Operation
Manual or Motorised using powerful 45NM motor, with mechanical limit and emergency override.
■ Lights
Built in LED lights in the arm, in daylight white with ON/OFF function.
■ Sensor
Wireless battery operated motion sensor attached to the awning included
options

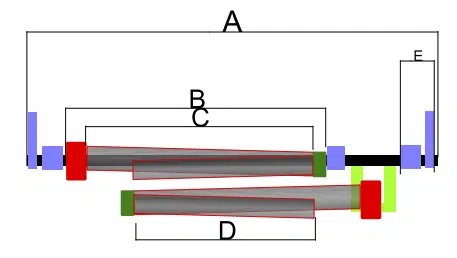

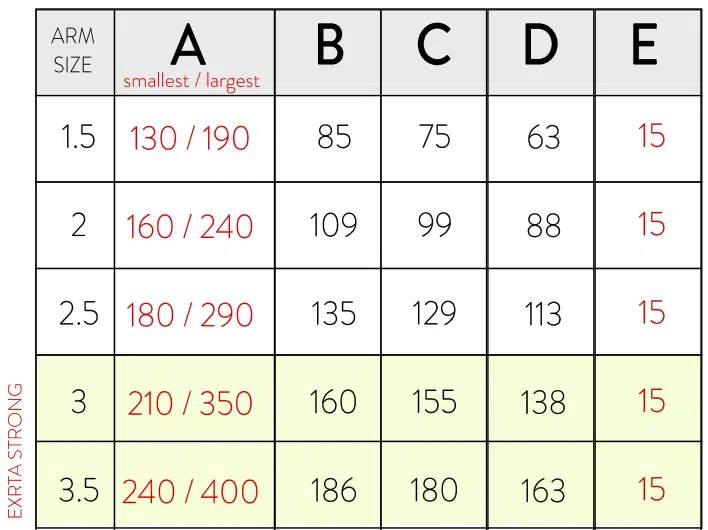

■ Size
See Chart
■ Arm Size
1.5m, 2m, 2.5m, 3m, 3.5m
■ Frame Colour
Available in White and Anthracite Grey as standard.
■ Fabric Colour
100’s of colours available from top European suppliers
■ Valance
200mm straight valance included
Additional extras
■ Frame
Frames can be powder coated to most K7 RAL colours
■ Signwriting
Logos and text can be printed on the main cover and valance
- Telescopic Legs: Available in White and Anthracite Grey
- Jockey Roll: Can be used with this system
Check out our other colors and product visualizations!
White Black
Snow White
White Blue
Marigold Yellow
White Yellow
Chocolate
Goldfish Orange
Emerald Green
White Emerald
Bone
Other OPEN CASSETTE AWNINGS
strand led
More Information
Strand bright vision
More Information
StrandDp valance
More Information
Strand T Range
More InformationOur specialist awnings advisors can help you choose fabrics, talk you through optional extras and they’ll take care of measuring and installation.
